169 - Swivel Base Flange (Self Colour)

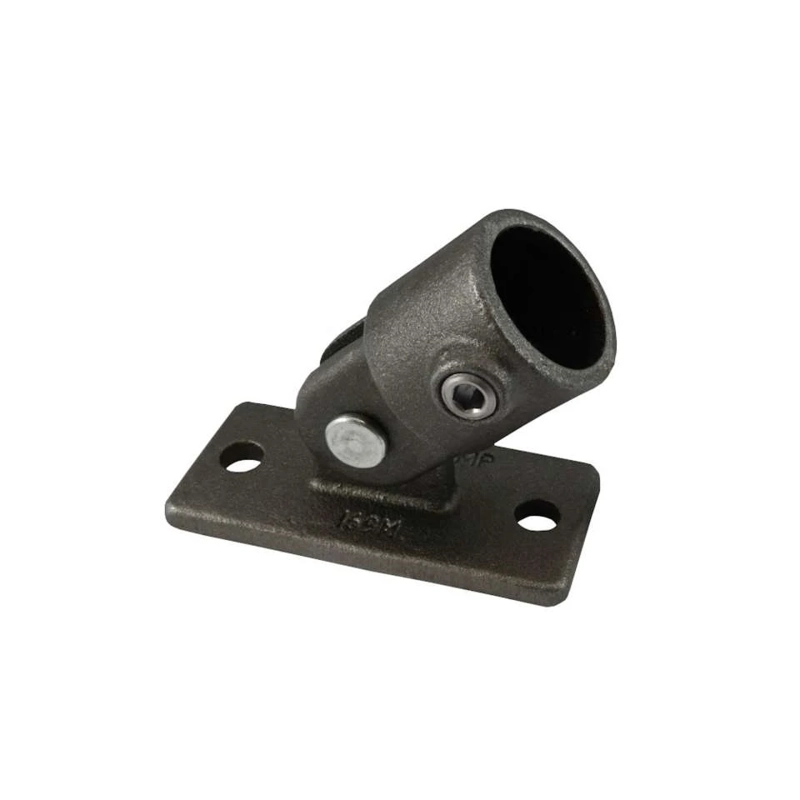

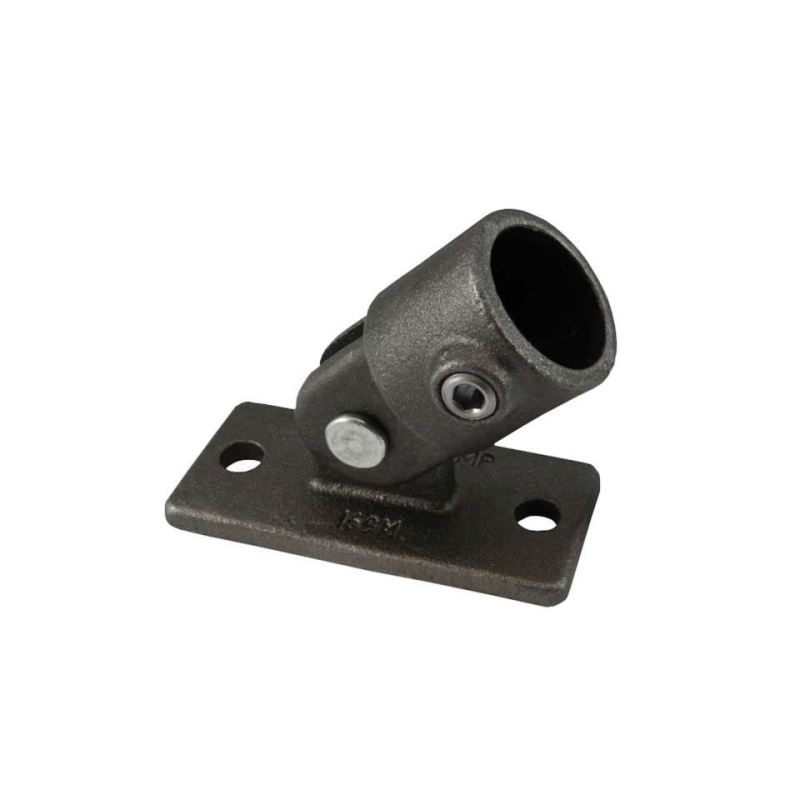

Interclamp 169 is a versatile swivel fitting, useful for fixing angled tubes to walls, and suitable for a wide range of common mechanical and chemical masonry anchors, which we should be pleased to quote on request.

The assembly is riveted together, although items can be supplied separately as 169M and 173F. This fitting is not to be used as a baseplate for the guardrail and is not designed to withstand lateral loading. To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

Dimensions

Size: B34

• a (mm): 61mm
• b (mm): 112mm
• c (mm): 85mm
• d (mm): 93mm
• e (mm): 52mm
• Hole diameter (mm): 11mm
• Weight (kg): 0.75
• Box Qty*: 80

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures are given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice. Do not perform any pre-drilling, tube cutting, casting uprights, or any other dimensionally critical processes before receiving fittings.
