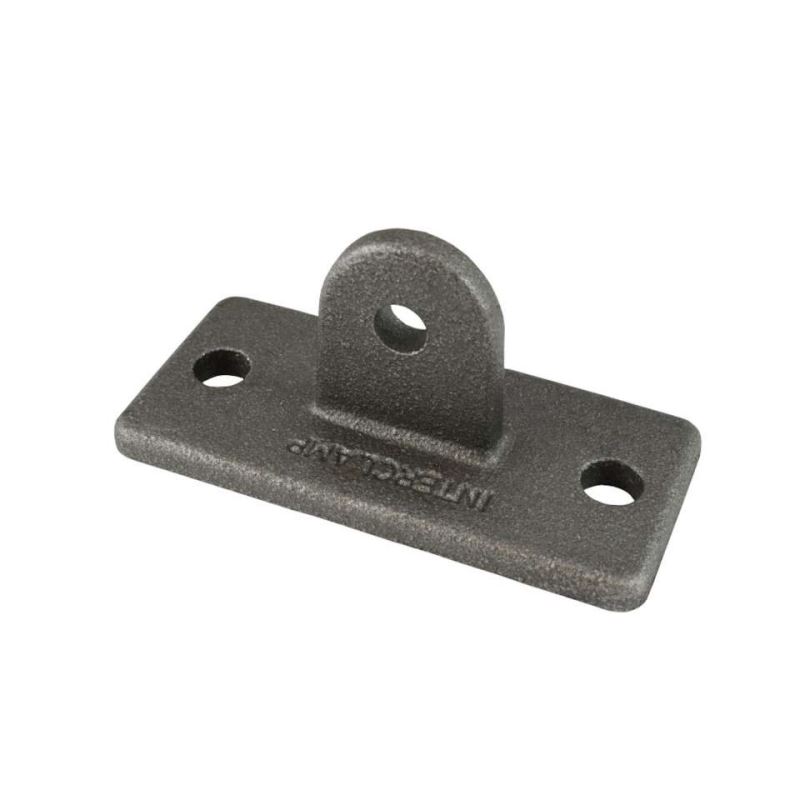

169M - Swivel Base Flange Male Part (Self Colour)

Interclamp fitting 169M is a swivel base flange (male part), a versatile fitting, commonly used for fixing angled tubes to walls, etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors, which we are pleased to quote for on request.

This fitting is available in one size only to suit all sizes of Interclamp type 173F. It is not designed to withstand lateral loading. To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

Dimensions

Size: B34

• b (mm): 112mm
• c (mm): 85mm
• d (mm): 32mm
• Hole diameter (mm): 11mm
• Weight (kg): 0.37
• Box Qty*: 100

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures are given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice. Do not perform any pre-drilling, tube cutting, casting uprights, or any other dimensionally critical processes before receiving fittings.

Not sure which Interclamp fixings to use? Get in touch for assistance.
