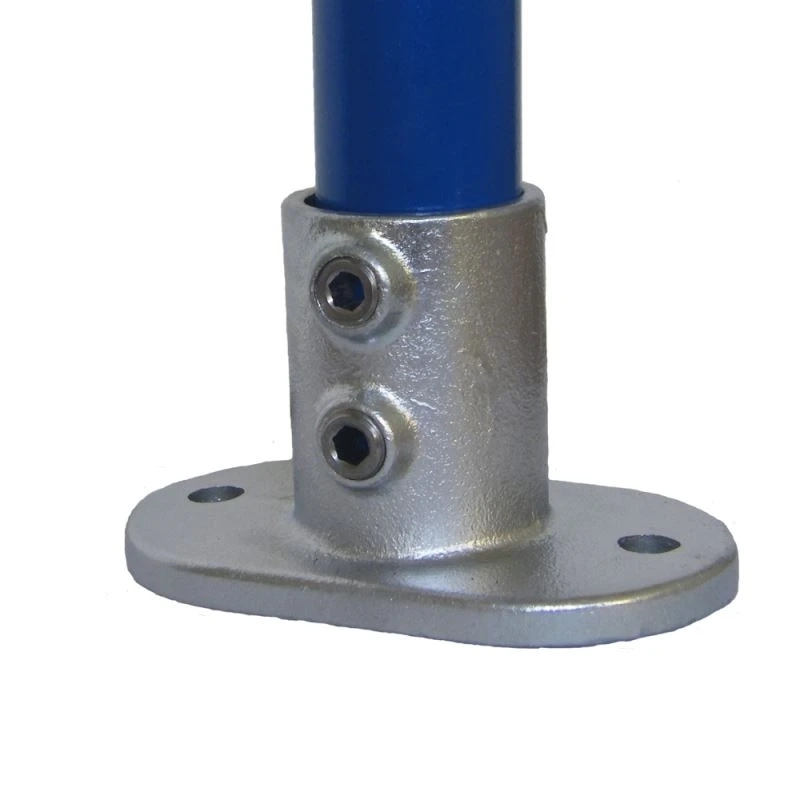

132 Railing Base Flange

Interclamp tube-clamp fitting type 132 is a galvanised base flange, usually used for uprights on level sites. Its fixing holes suit a wide range of common mechanical and chemical masonry anchors, which we should be pleased to quote for on request. Type 132 is designed to meet the dimensional requirements for parapets as defined by BS7818:1995 (Pedestrian Restraint Systems in Metal).

Warning: To achieve optimum load characteristics, this tube clamp fitting should be fitted so that the fixing holes are in line with the applied load.

Dimensions

Sizea (mm)c (mm)d (mm)e (mm)Hole Dia (mm)Weight (kg)Box Qty*Part No

  A27  60  105  76  52  11  0.39  80  132-A27

  B34  71  127  89  62  15  0.65  45  132-B34

  C42  84  139  101  72  15  0.88  30  132-C42

  D48  89  152  114  86  15  1.17  23  132-D48

  E60  104  165  127  96  18  1.59  17  132-E60

Not sure which Interclamp fixings to use? Call us on 01460 261213.
