131 - Wall Flange (Self Colour)

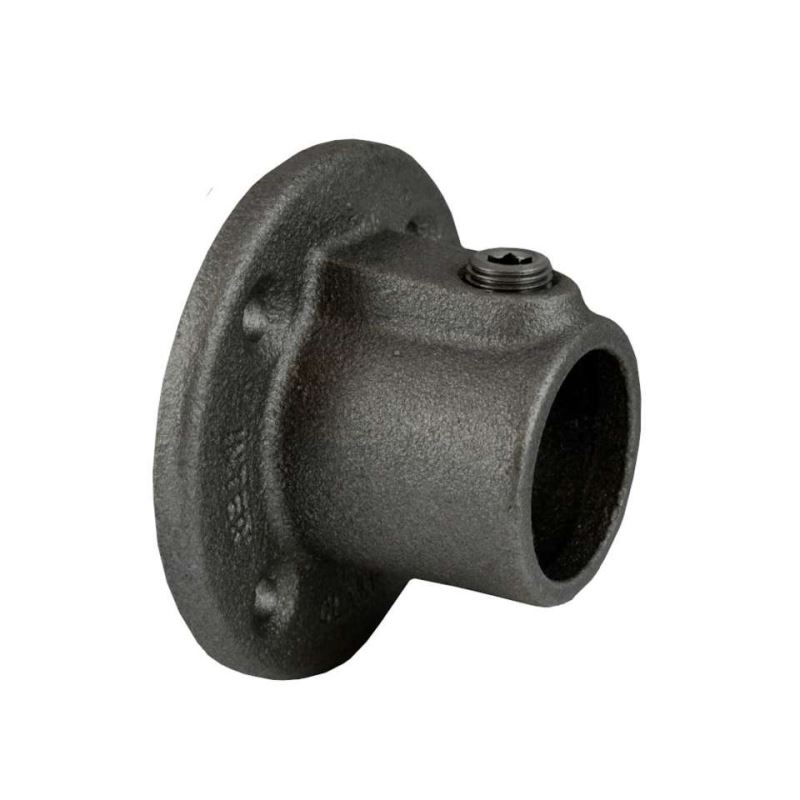

Interclamp's Wall Flange type 131 is a self-coloured fitting often used where tube rails meet the wall on level sites.

Warning: This Interclamp fitting is not recommended as a baseplate to support handrailing, guardrailing, parapets, balustrades or other structures. Please use Interclamp fitting type 132 as an alternative.

Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

Dimensions

• Size: B34
• b (mm): 48mm
• c (mm): 89mm
• d (mm): 65mm
• Weight (kg): 0.48
• Box Qty*: 70

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice. Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Please ask for assistance if you are unsure which Interclamp fittings you require.
