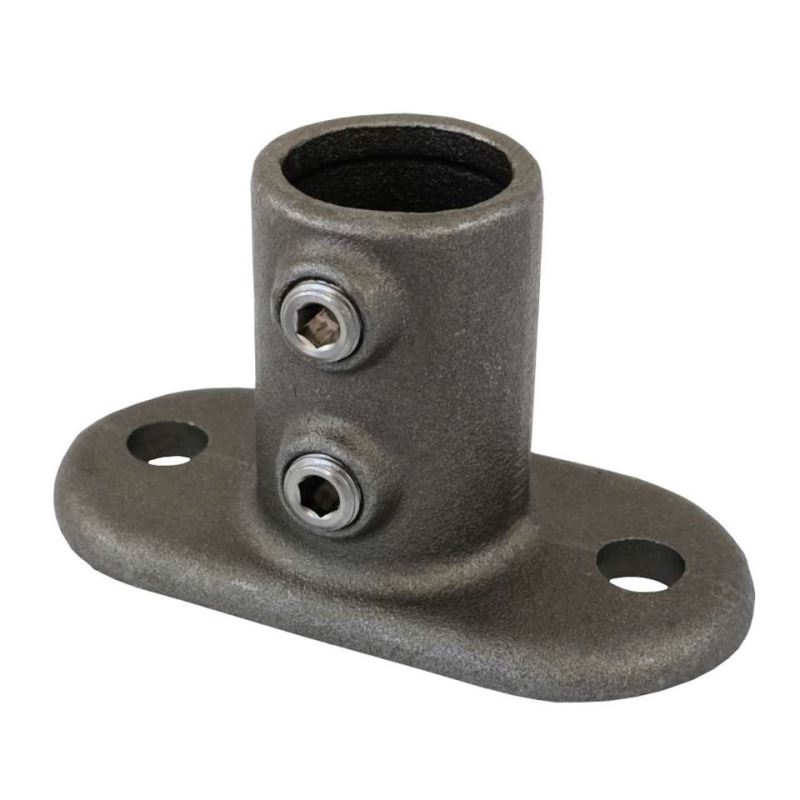

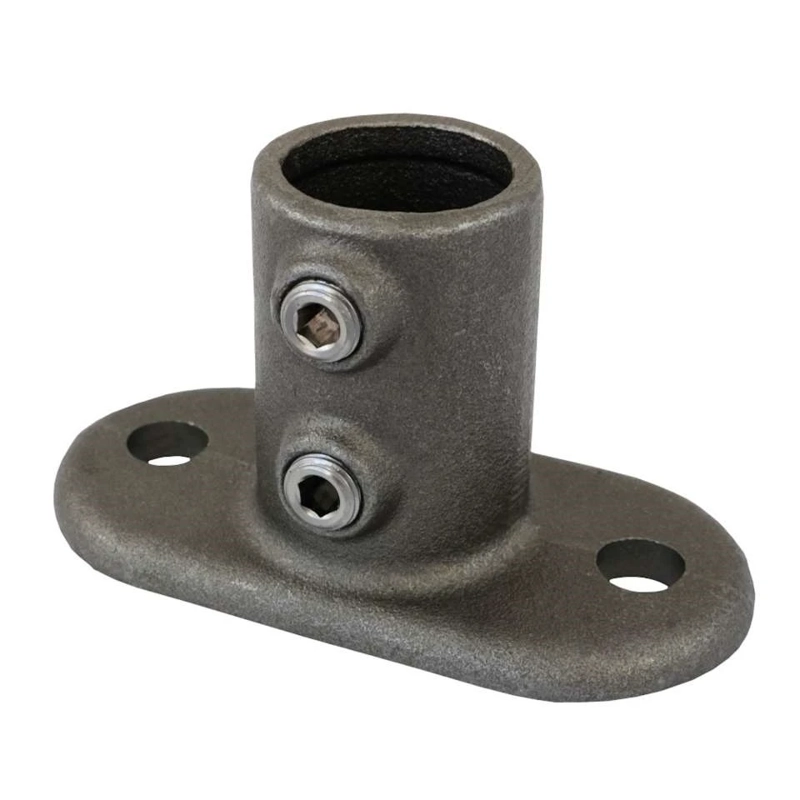

132 - Railing Base Flange (Self Colour)

Interclamp tube-clamp fitting type 132, a self-coloured base flange, usually used for uprights on level sites. Its fixing holes suit a wide range of common mechanical and chemical masonry anchors, which we should be pleased to quote for on request. Type 132 is designed to meet the dimensional requirements for parapets as defined by BS7818:1995 (Pedestrian Restraint Systems in Metal).

Warning: To achieve optimum load characteristics, this tube clamp fitting should be fitted so that the fixing holes are in line with the applied load.

Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

Dimensions

• Size: B34
• a (mm): 71mm
• c (mm): 127mm
• d (mm): 89mm
• e (mm): 62mm
• Hole dia (mm): 15mm
• Weight (kg): 0.65
• Box Qty*: 45

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice. Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Please ask for assistance if you are unsure which Interclamp fittings you require.
