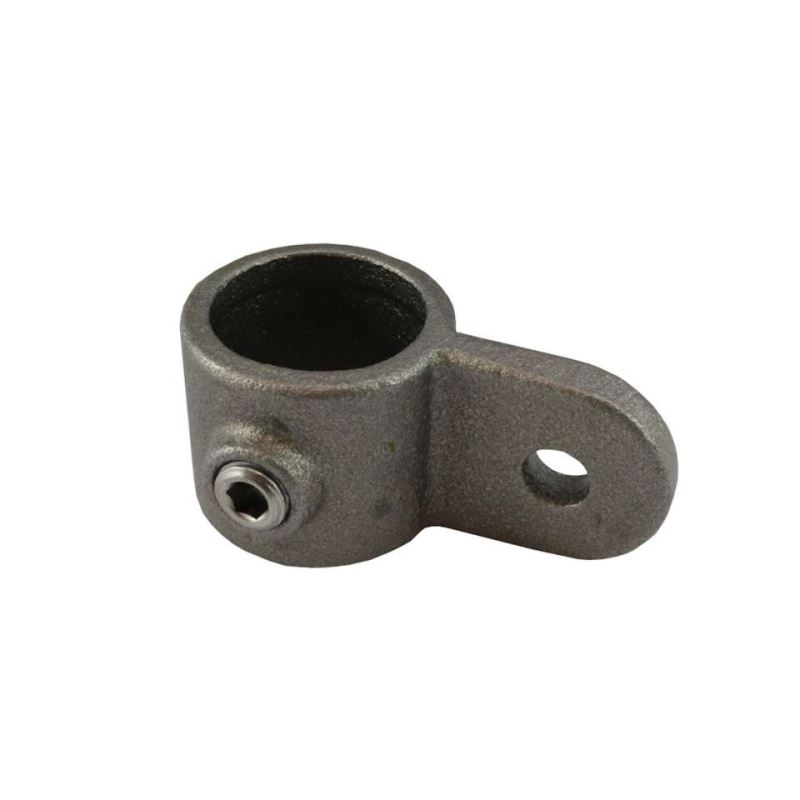

173M - Single Swivel Combination Male Part (Self Colour)

Interclamp 173M single swivel combination (male part) is a single lugged fitting. Dependent on load requirements, this fitting may sometimes be used to fix flat sheets to tubes. The tube cannot be joined within the fitting.

This fitting is not designed to withstand lateral loading. To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

Dimensions

Size: B34

• a (mm): 43.5mm
• Weight (kg): 0.26
• Box Qty*: 150

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures are given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice. Do not perform any pre-drilling, tube cutting, casting uprights, or any other dimensionally critical processes before receiving fittings.

Order today for prompt delivery.
