101 - B34 Short Tee (Self Colour)

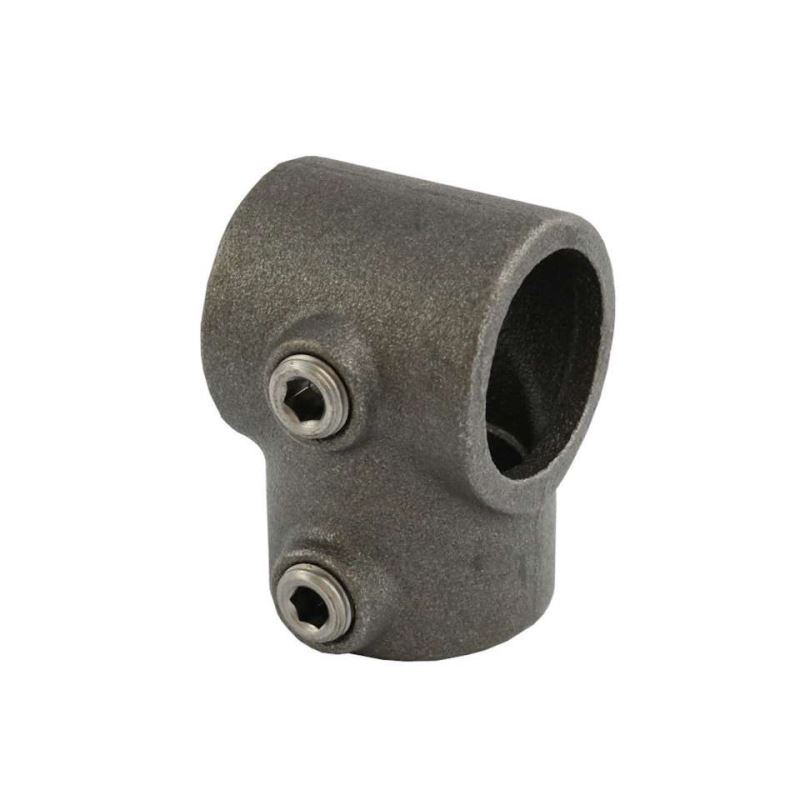

The Interclamp® 101 Short Tee Self Colour (bare metal / black finish) is a 90° butt joint, often used to join intermediate uprights to top rails, and middle rails to end uprights on level sites.

The key clamp cannot be used where the through tube (horizontal in photo) has to be joined within the fitting (See Interclamp Fitting 104 - Long Tee for this).

Please note that these fittings are bare metal and will be naturally prone to rusting unless a protective coating such as a lacquer is applied.

Product Data & Dimensions

• Size: B34
• a (mm): 46mm
• Weight (kg): 0.32
• Box Qty*: 84

* Fittings are sold individually and do not need to be bought in box quantities.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

For assistance buying the right tube clamp fitting, please get in touch.
