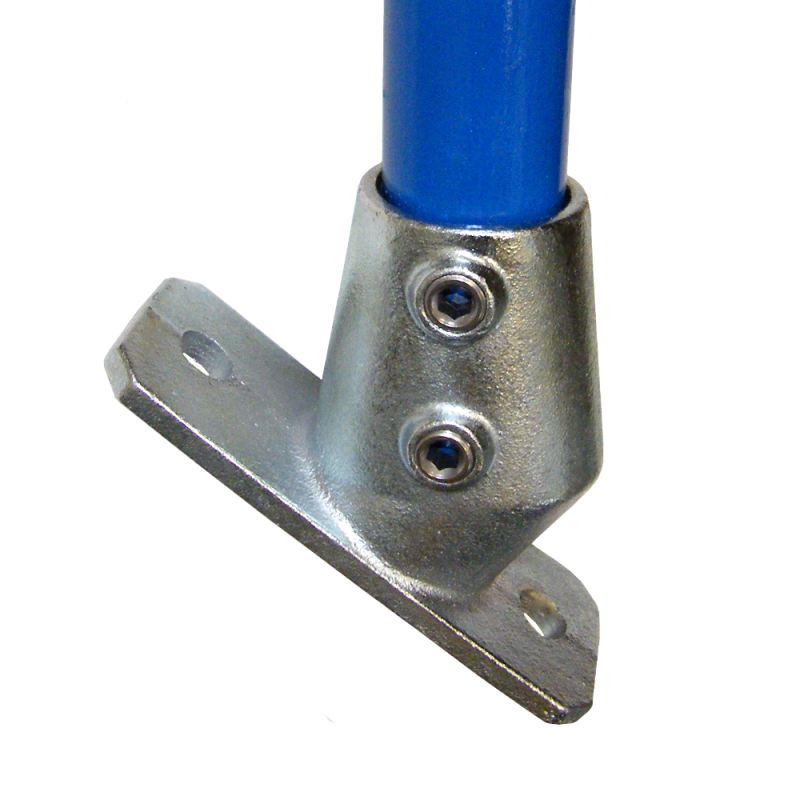

251 Slope Base Flange 30-45 degrees

The Interclamp 251 slope base flange is a base flange fitting for sloping sites, adjustable from 30 to 45 degrees. As the fixing holes in the base cannot be fixed in line with the applied load, it's only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required, type 132 is normally used, with the upright tube bent to the required angle.

Fixing holes suit a wide range of common mechanical and chemical masonry anchors, which we can quote for on request. The dimensions of the base are designed to be compatible with many traditional welded ball standard bases to allows easy interchangeability.

The following sizes are available: B34, C42 and D48. Simply select the fitting you need from the drop-down field above.

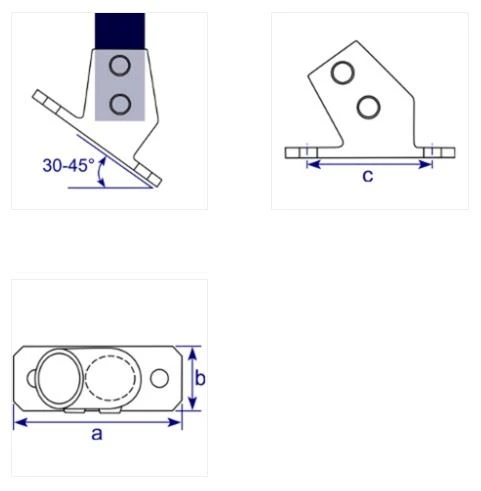

Dimensions

*Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Interclamp fittings can be used for safety barriers, handrailing, sports equipment, guardrails, fencing, playground equipment, shopfitting, exhibition stands and much more - view our image gallery.

For help choosing the right Interclamp tube clamp for your needs, please get in touch.
