246 Heavy Duty Side Palm
£14.23
In Stock
Add To Basket
Need some help?

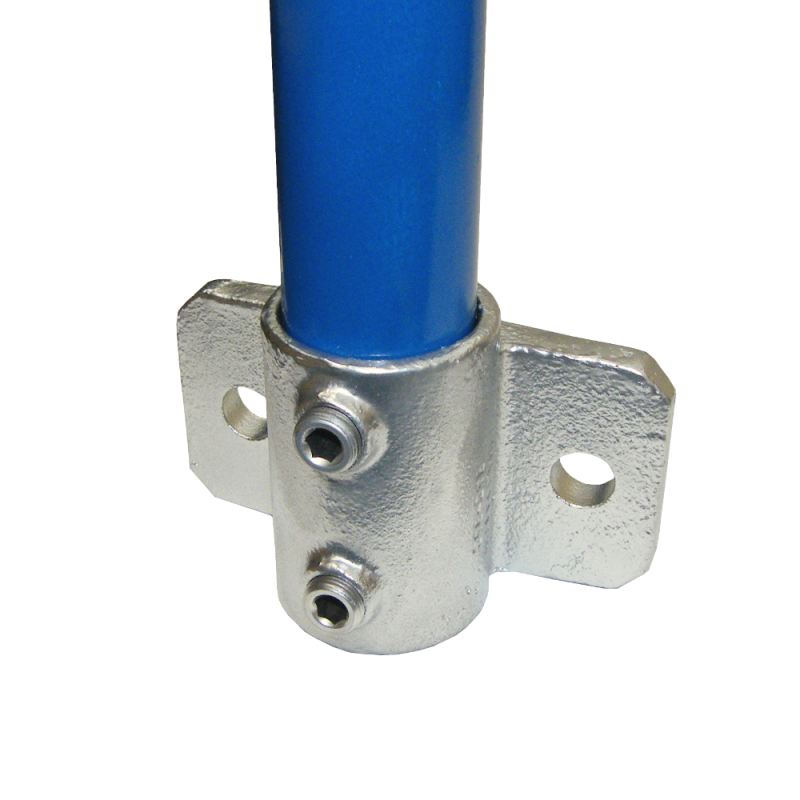

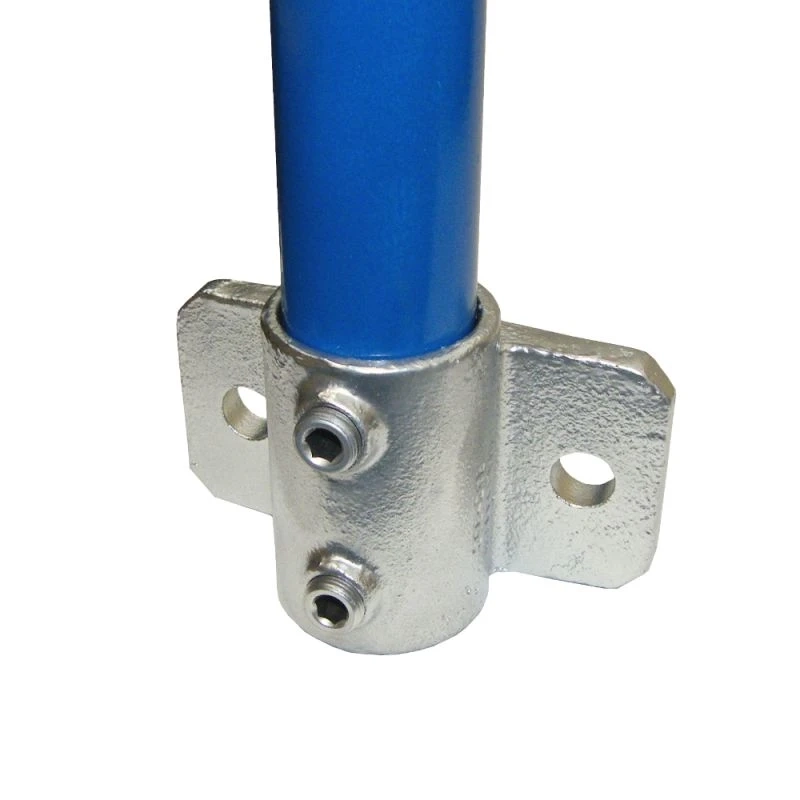

If you are unsure what to buy, get in touch with us as we can advise on our full range of products.The Interclamp type 246 is a heavy-duty side palm fitting, designed to be interchangeable with traditional welded ball standard bases. Fixing holes suit a wide range of common mechanical and chemical masonry anchors, which can be quoted for on request.
The following sizes are available: B34, C42 and D48. Simply select the fitting you need from the drop-down field above.

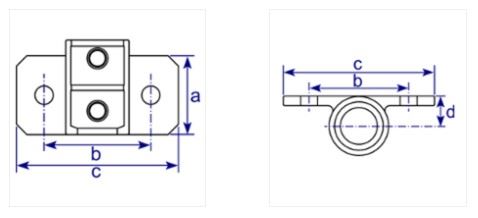

Dimensions
| Size | a | b | c | d | e | Weight | Box Qty* |
| mm | mm | mm | mm | mm | (KG) | ||
| B34 | 75 | 102 | 145 | 23.5 | 0.97 | 50 | |
| C42 | 75 | 102 | 145 | 28 | 1.13 | 35 | |
| D48 | 75 | 102 | 145 | 31.5 | 1.26 | 25 |
* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.
Not sure which Interclamp fixings to use? Contact us today for assistance.
