232 D48 ONLY Heavy Duty Railing Base Flange
£16.99
In Stock
Add To Basket
Need some help?
If you are unsure what to buy, get in touch with us as we can advise on our full range of products.The Interclamp fitting type 232 is a heavy-duty railing base flange, designed to be interchangeable with traditional welded ball standard bases. Fixing holes suit a wide range of common mechanical and chemical masonry anchors, which we can quote for on request.
This fitting is available in size D48.

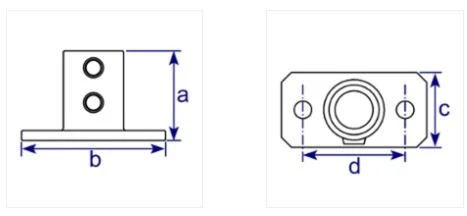

Dimensions
| Size | a | b | c | d | e | Weight | Box Qty* |
| mm | mm | mm | mm | mm | (KG) | ||
| D48 | 90 | 146 | 75 | 102 | 1.19 | 22 |
* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.
Interclamp fittings can be used for safety barriers, handrailing, sports equipment, guardrails, fencing, playground equipment, shopfitting, exhibition stands and more - please view our image gallery.
