185 Eaves Fitting 27.5 Degrees
£20.47
In Stock
Add To Basket
Need some help?

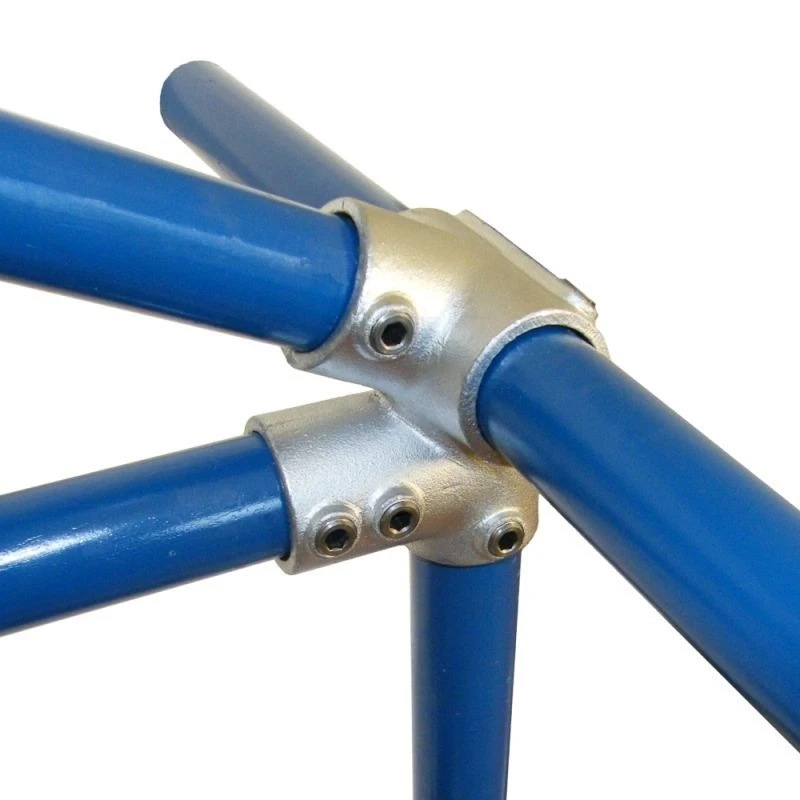

If you are unsure what to buy, get in touch with us as we can advise on our full range of products.The Interclamp fitting type 185 is commonly used to form roof structures in conjunction with type 191, with an angle of 27°. The horizontal eaves tube running longitudinally with the roof may be joined within the fitting (there are two set screws acting on this tube, which are obscured in the photo above).
This fitting is available in size D48.
Dimensions
- a (mm) - 68mm
- b (mm) - 90mm
- Weight (kg) - 1.6kg
Interclamp fittings are used for safety barrier installations, handrailing, sports equipment, guardrails, fencing, playground equipment, shopfitting, exhibition stands and much more - view our image gallery.
Not sure which Interclamp fittings to use? Get in touch with us.
