255 Slope Long Tee 11-29 degrees
Add To Basket
Need some help?

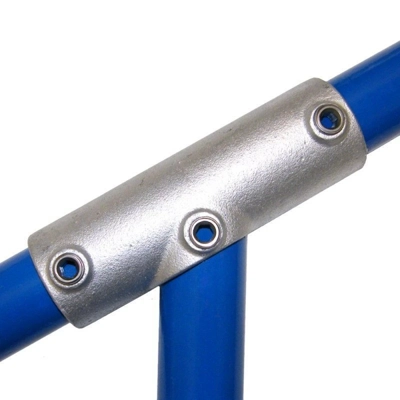

If you are unsure what to buy, get in touch with us as we can advise on our full range of products.The Interclamp 255 slope long tee is adjustable for slopes from 11° to 29°, and often used to join intermediate uprights to top and middle rails to end uprights. This Interclamp fitting can be used where the through tube (sloping in the photo) has to be joined within the fitting.
The fitting is available in size D48.
Interclamp type 253 may often be used as an alternative. Please also see our Interclamp Assist range of flush fittings to help compliance with the Disability Discrimination Act (DDA) and the Building Regulations Part M:2004.

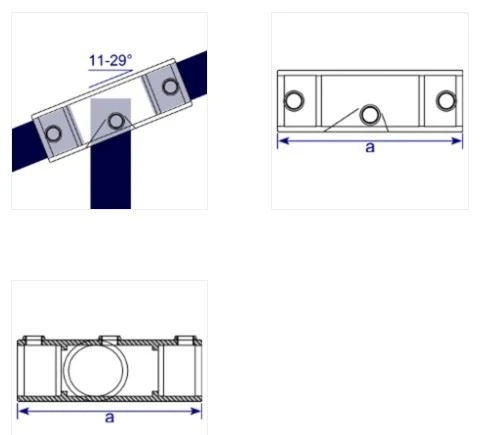

Dimensions
Size | a | b | c | d | e | Weight | Box Qty* |
mm | mm | mm | mm | mm | (KG) | ||
D48 | 184 | 1.10 | 22 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Interclamp fittings can be used for safety barriers, handrailing, sports equipment, guardrails, fencing, playground equipment, shopfitting, exhibition stands and much more - view our image gallery for examples.
Order today for prompt delivery.
